FS-F Series Front
Indoor fixed installation

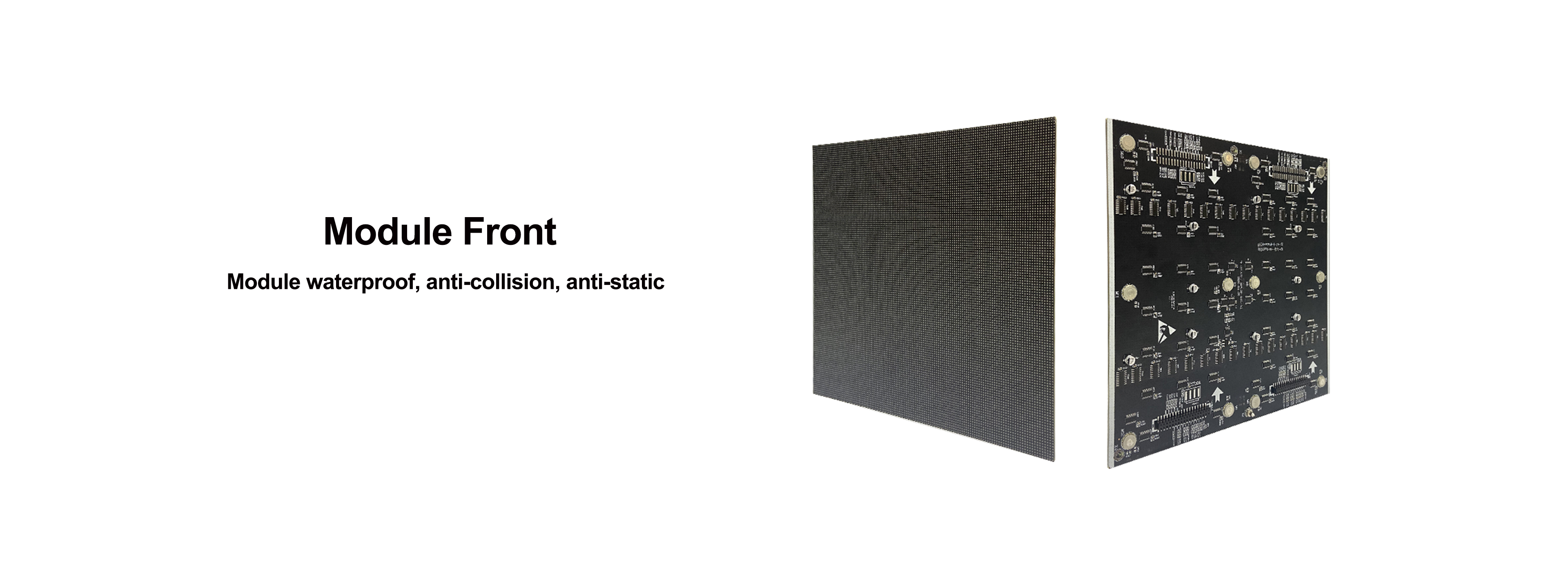

Module front and back service

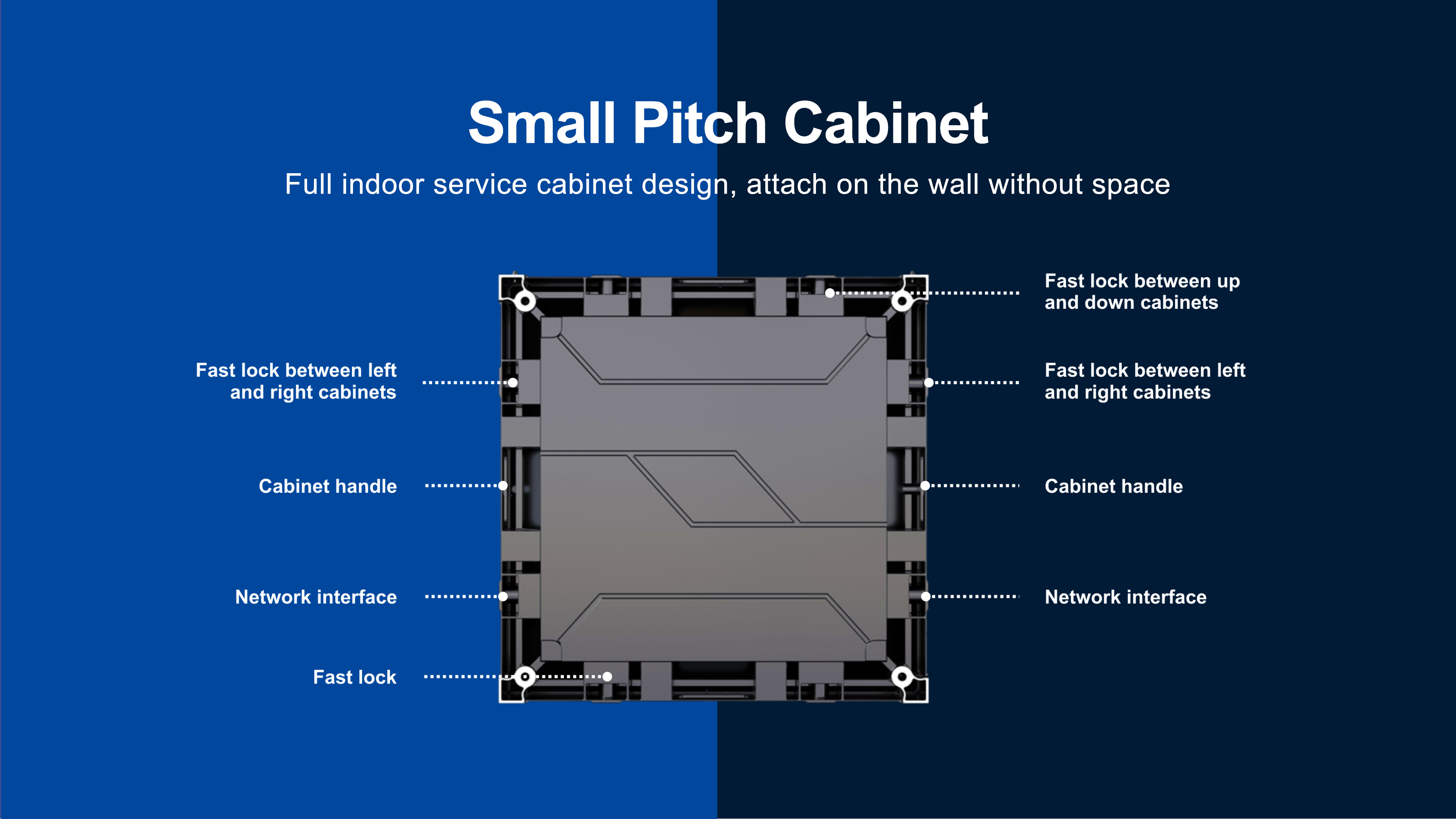

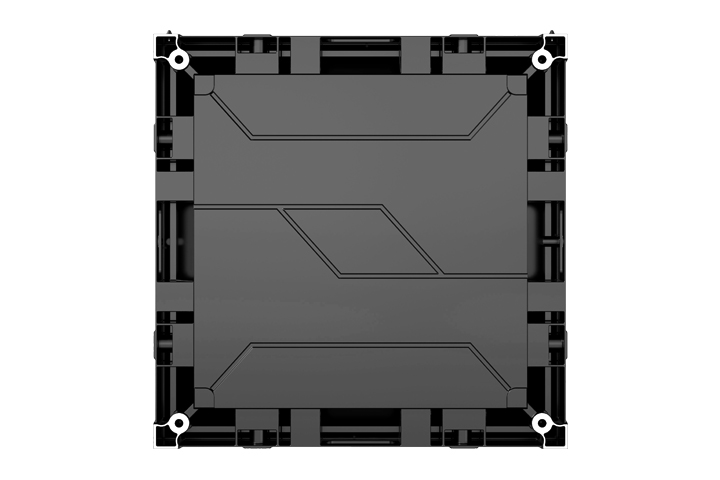

Simple cabinet design for easier installation, faster and easier maintenance
Same modules size with different pitch, easy to choose.
Fast lock design makes installation more faster.
Product advantages:
- High refresh rate,no drag
- High gray scale
- Wide viewing angle，no color difference
- Excellent display effect
- Calibration technology available
- Hard connection, splicing without cables
Product Series Model
P1.87
P2
P2.5
P3
Technical Parameters
FS-F Series Front
| INDOOR | ||||||
| Pixel Pitch | 1.579 | 1.67 | 1.875 | 2 | 2.5 | 3 |
| Cabinet Resolution | 304*304 dots | 288*288 dots | 256*256 dots | 240*240 dots | 192*192 dots | 160*160 dots |
| Pixel Density (dots/m²) | 401111dots/m2 | 360000dots/m2 | 284444dots/m2 | 250000dots/m2 | 160000dots/m2 | 111111dots/m2 |
| Cabinet Dimension (W×H×D) | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm |

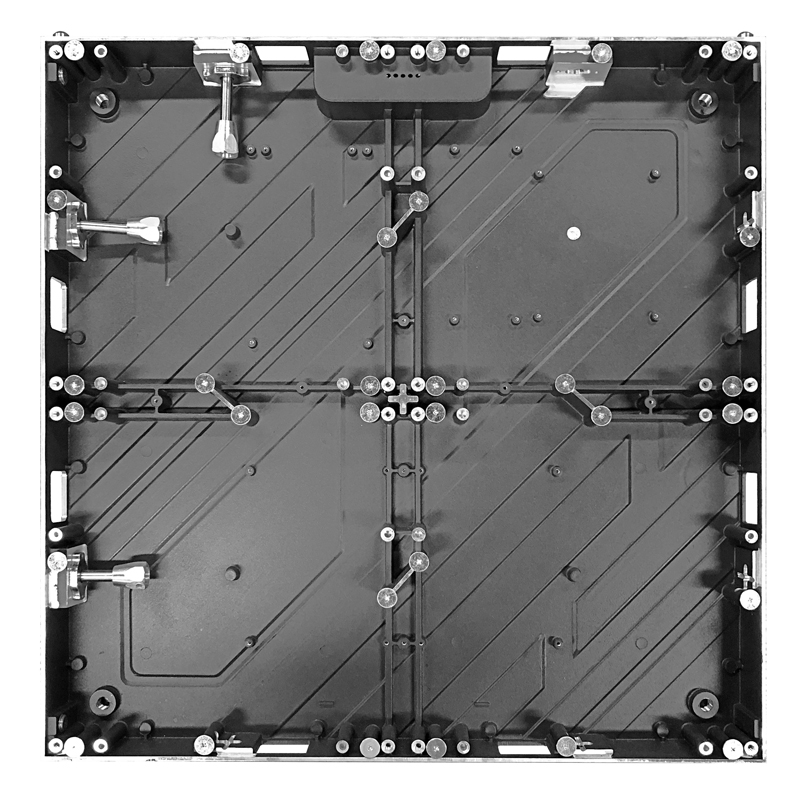

| Cabinet Material | Die-casting Aluminum | |||||
| Cabinet Weight (kg) | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg |
| Color Depth (Bit) | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit |
| Refresh Rate (Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Driver Mode | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver |
| Brightness (nits) | ≥600nits | ≥600nits | ≥600nits | ≥800nits | ≥900nits | ≥900nits |
| Viewing Angle (H°) | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° |
| Viewing Angle (V°) | 140 ° | 140 ° | 140 ° | 140 ° | 140 ° | 140 ° |
| AC Power Input (V) | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V |
| AC Power Frequency (Hz) | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz |
| Max. Power (W/m²) | 680w/m² | 680w/m² | 570w/m² | 520w/m² | 520w/m² | 550w/m² |
| Avg. Power (W/m²) | 230w/m² | 230w/m² | 200w/m² | 170w/m² | 170w/m² | 190w/m² |
| Operating Temperature (℃ ) | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ |
| IP Rating (IP) | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 |
| Installation Type | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation |
| Cabinet Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance |
